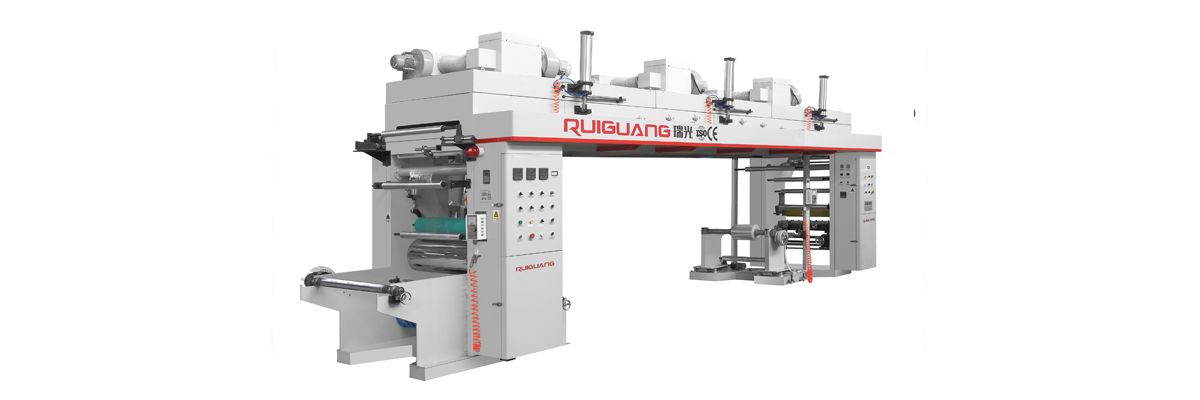

    RG-1A type medium speed dry laminating machine

    RG-1A type medium speed dry laminating machine
    • Stable quality: the implementation of the whole process quality monitoring, meticulous, and all aspects of testing!
    • Reasonable price: effective internal cost control, reducing expenses and benefiting customers!
    • Fast delivery: advanced production line, sufficient stocking, shorten the delivery time!
    • Tel

    Product Details


    This machine is suitable for BOPP, PET, CPE, CPP, nylon, aluminum foil, paper and other roll-like film material two or more layers.

    Detailed description


    1. The machine adopts variable frequency speed control motor drive.

    2. The first unwinding with single-station discharge, photoelectric correction, magnetic brake control tension.

    3. The second unwinding is carried out with a single piece of unwinding all magnetic powder brakes to control the tension.

    4. Coating unit with anilox roller with a scraper of the coating discharge,

    Way, scraper three-way adjustment structure.

    5. Four-stage air-cooled oven, inlet and outlet pressure design, the second return air, both to save energy and reduce the residual solvent content.

    6. Composite pressure roller and coated pressure roller evenly with double cylinder pressure.

    7. Winding with double torque motor.

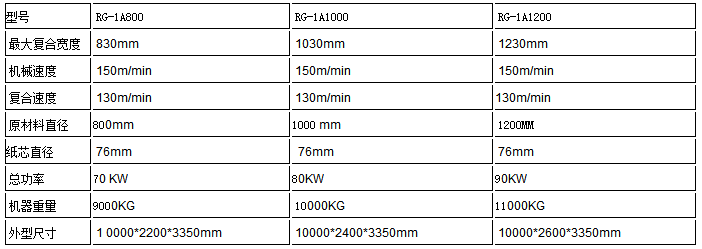

    Main technical parameters


    The appearance, technical parameters, performance and features of the machine are subject to change without notice. Without the express written permission of Ruiguang company, may be reproduced or the dissemination of relevant information
