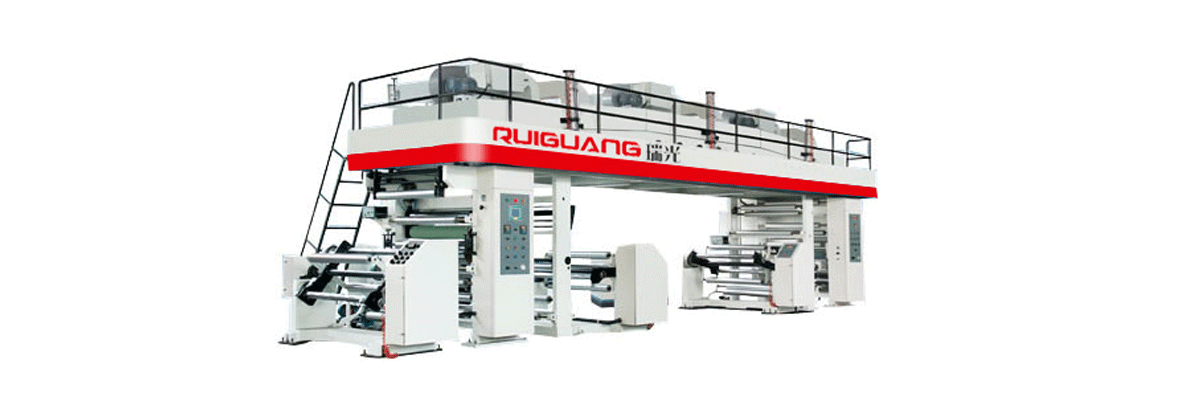

    RG-2A high-speed dry laminating machine

    RG-2A high-speed dry laminating machine
    • Stable quality: the implementation of the whole process quality monitoring, meticulous, and all aspects of testing!
    • Reasonable price: effective internal cost control, reducing expenses and benefiting customers!
    • Fast delivery: advanced production line, sufficient stocking, shorten the delivery time!
    • Tel

    Product Details


    This machine is suitable for BOPP, PET, CPE, CPP, nylon, aluminum foil, paper and other roll-like film material two or more layers.

    Main Description:

    ■ machine using PLC logic control and protection, touch screen centralized control;

    ■ machine four AC variable frequency motor tension control, four closed-loop tension control and display;

    ■ retractable volume independent double-arm double-position rotary frame, inflatable shaft support roll, non-stop refueling, unwinding material for manual cutting, winding material for automatic cutting;

    ■ Three-stage open-type efficient and efficient drying oven and into the exhaust design, effective control of residual solvents;

    ■ water cooling before rolling;

    ■ pneumatic scraper, horizontal movement;

    ■ glue uniform device (uniform rubber roller);

    ■ Emptying EPC gas-liquid correction;

    ■ circulating oil or water heating composite steel roller;

    ■ Three-roll compound press roller device;

    A second material preheating device;

    ■ dry heat source: electricity, steam, hot oil, natural gas;

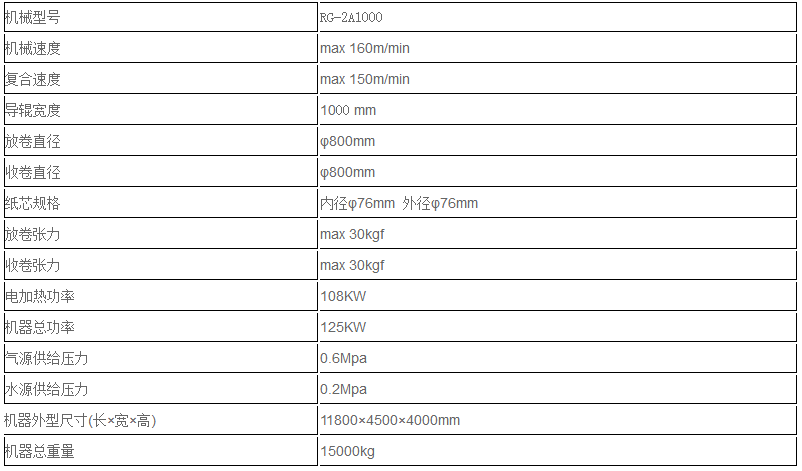

    The main technical parameters:


    The appearance, technical parameters, performance and features of the machine are subject to change without notice. Without the express written permission of Ruiguang company, may be reproduced or the dissemination of relevant information
