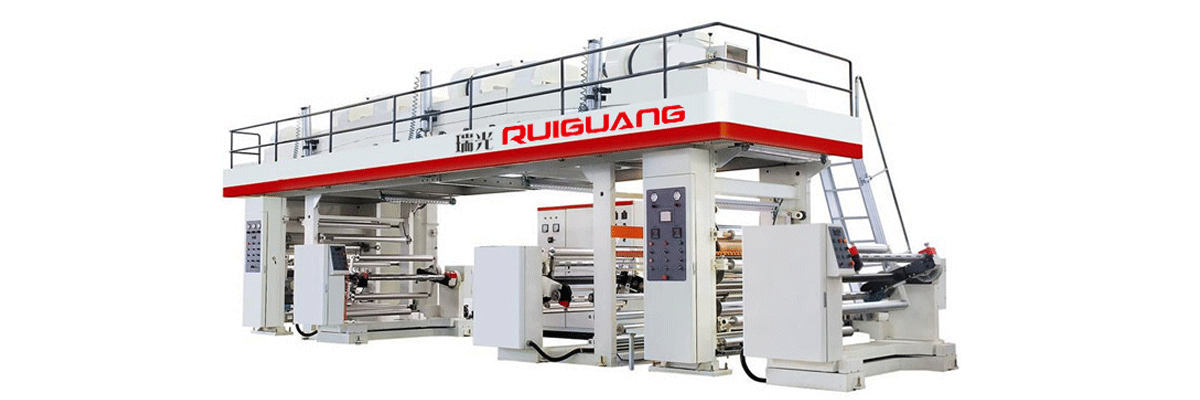

    RG-3A high-speed dry laminating machine

    RG-3A high-speed dry laminating machine
    • Stable quality: the implementation of the whole process quality monitoring, meticulous, and all aspects of testing!
    • Reasonable price: effective internal cost control, reducing expenses and benefiting customers!
    • Fast delivery: advanced production line, sufficient stocking, shorten the delivery time!
    • Tel

    Product Details


    This machine is suitable for BOPP PET PVC CPP PE NY, aluminum foil film and paper roll, such as two or more layers of a combination of high strength, high preservation or resistance to cooking and other excellent packaging materials

    main feature:

    ● PLC programmable controller control, stable and reliable operation.

    ● The man-machine interface sets the parameters through the touch screen and displays the current status data of the machine.

    ● Import vector nine motor synchronous control.

    ● The guide roller in the oven is running synchronously.

    ● retractable volume flip double position mechanism, EPC automatic correction system, automatic cutting device can be

    ● Realize non-stop access.

    ● pre-drive synchronization, no slowdown automatically re-material.

    ● Mobile scraper, pneumatic back pressure device.

    ● composite with three roll method, the pressure is more uniform, more solid composite.

    ● composite substrate preheating device, composite finished water cooling device.

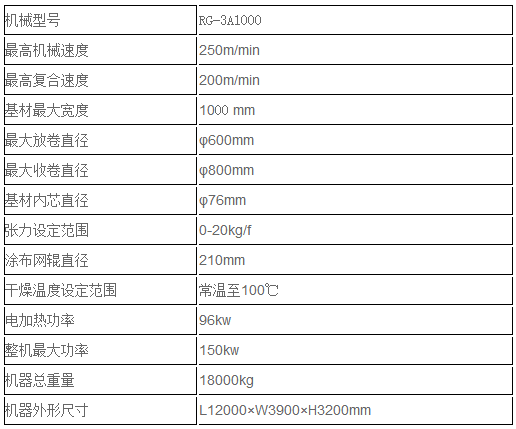

    The main technical parameters:


    The appearance, technical parameters, performance and features of the machine are subject to change without notice. Without the express written permission of Ruiguang company, may be reproduced or the dissemination of relevant information
